Fruit quality tester (firmness)

How to check fruit quality? Use this Fruit firmness tester to determine the firmness of the fruit pulp

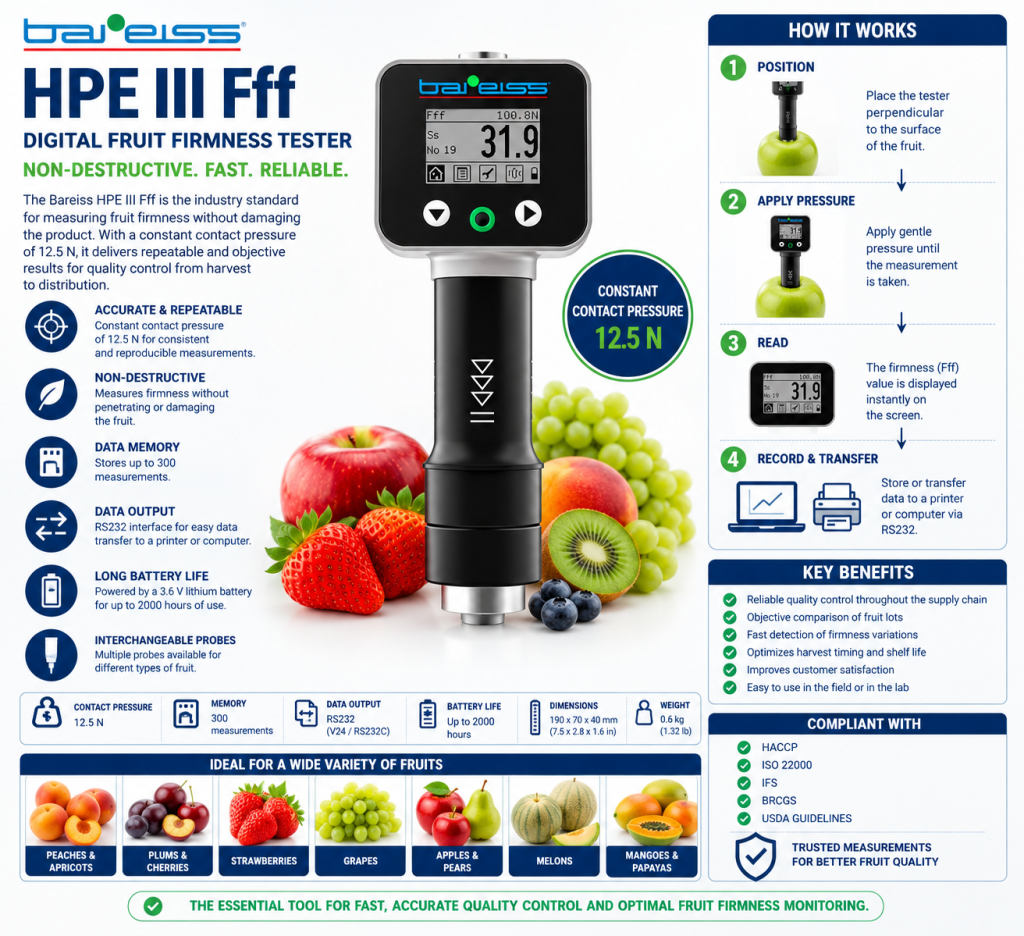

The Bareiss Fruit Hardness Tester – HPE III Fff is used to determine the hardness of fruits, vegetables, meat, and fish. It consists of interchangeable test anvils according to different fruits and vegetables that are to be measured in a non-destructive way unlike the fruit penetrometer. Our digital durometer plays a very important role in determining the quality of the fruit so the sellers can ensure the perfect ripeness when it becomes available to the consumers. The special spring-loaded outer sleeve helps in maintaining the correct pressure to attain repeatable, accurate results.

Test Anvils	Applicable measuring methods
Cylinder 0.10 cm2	Plums, Damsons, Apricots, Peaches
Cylinder 0.25 cm2	Tomatoes, Grapes, Eggplant, Cherries, Melons, Blueberries
Cylinder 0.5 cm2	Strawberries, Watermelon, Broccoli, Meat, Tofu
Sphere Ø 2.5 mm	Cucumber, Radish, Carrot, Kohlrabi, Zucchini, Onion (firm)
Sphere Ø 5.0 mm	Avocados, Apples, Pears, Cucumbers, Oranges, Peppers, Papayas, Melons, Mangoes, Citrus fruits, Onion(soft)
Spherical segment r= 6.3mm	Cooked Potatoes, Bananas, Smoked Fish

Features & Benefits

1) User Friendly: The yielding of the surface at a given contact force and defined measuring distance are displayed. The measured values are not a force unit but a quotient.

2) Large display: This fruit texture analyzer has a large display of 102 x 64 pixels making it easy for an operator to see the readings. The screen is subdivided into general data information, the main field for measurement results on the test sample and the navigation bar+ charge status of the battery.

3) Interchangeable test anvils: The operator can choose the test anvil according to the fruit or vegetables being tested.

4) Non-Destructive method: The method used for testing the sample is non-destructive, therefore does not damage the fruit or vegetable. The test anvil does not penetrate the fruit peel, whereas the penetrometer damages the fruit to obtain a firmness measurement. Many vendors are still wasting tons of food annually and unfortunately, it is negatively impacting the end consumers. The Bareiss digital firmness analyzer is replacing penetrometers all over the World and providing real cost-saving advantages to growers, packers, retailers, and consumers.

5) Data storage: This type of fruit penetrometer uses a shore hardness scale, has the capacity to store up to 300 measured values and has a serial interface. The USB cable is used to transfer the measured values to a PC.

6) Handgrip: This digital fruit hardness tester consists of a patented handgrip for achieving the correct measuring angle and pressure. The body of this digital durometer is made up of an aluminum alloy which provides a light and robust design.

7) Error indication: The device gives an error beep if the procedure is interrupted.

Digital hardness tester HPE III including one indenter, free choice, for ranges of application: peaches, apricots, plums, cherries, tomatoes, strawberries, cucumbers, radish, carrots, apples, avocados, papayas, melons, oranges, mango, cooked potatoes.

HPE III Fff
