Fruit quality tester (firmness)

Bareiss - HPE III Fff
For firmness of the fruit pulp

$7,799.00 CAD

  • 12 months limited warranty
  • ultrasonic energy (40 kHz)
  • 300 measuring results
  • Battery for 2000 hours

Support, maintenance, calibration
1 800 463-4363



How to check fruit quality? Use this Fruit firmness tester to determine the firmness of the fruit pulp

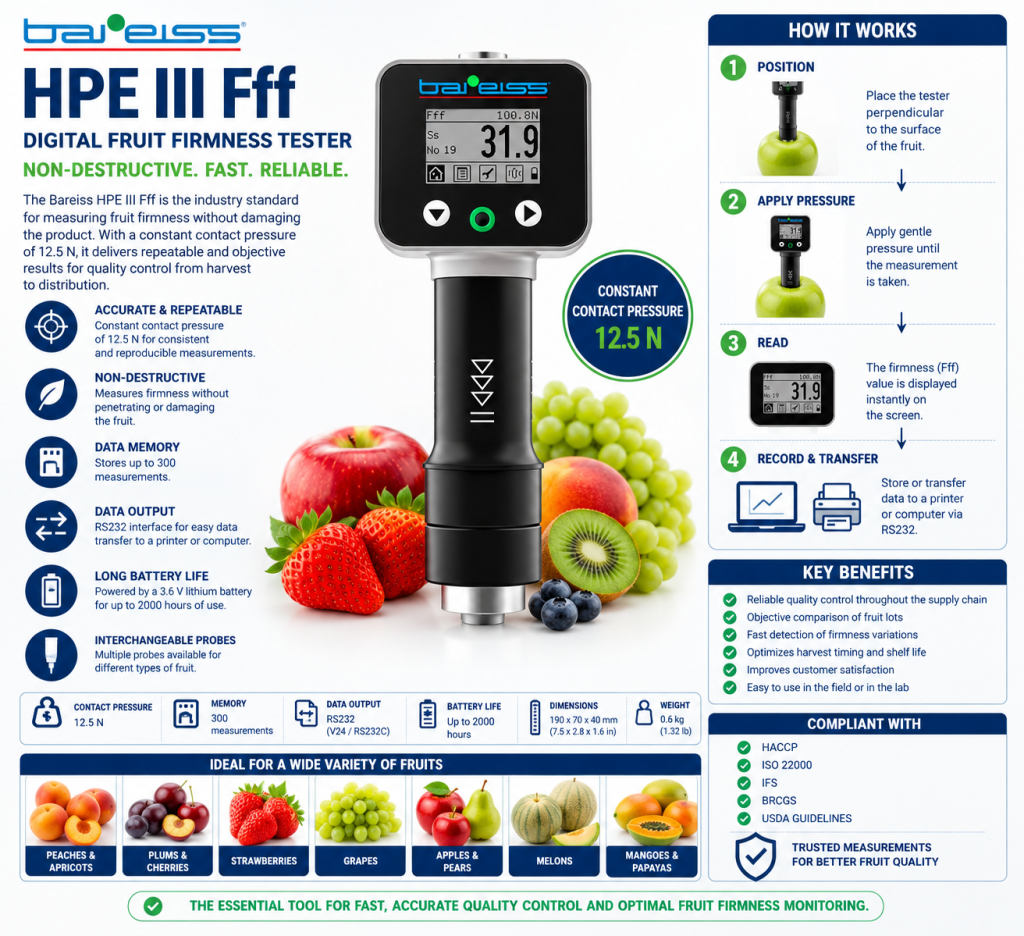

The Bareiss Fruit Hardness Tester – HPE III Fff is used to determine the hardness of fruits, vegetables, meat, and fish. It consists of interchangeable test anvils according to different fruits and vegetables that are to be measured in a non-destructive way unlike the fruit penetrometer. Our digital durometer plays a very important role in determining the quality of the fruit so the sellers can ensure the perfect ripeness when it becomes available to the consumers. The special spring-loaded outer sleeve helps in maintaining the correct pressure to attain repeatable, accurate results.

Test Anvils Applicable measuring methods
Cylinder 0.10 cm2 Plums, Damsons, Apricots, Peaches
Cylinder 0.25 cm2 Tomatoes, Grapes, Eggplant, Cherries, Melons, Blueberries
Cylinder 0.5 cm2 Strawberries, Watermelon, Broccoli, Meat, Tofu
Sphere Ø 2.5 mm Cucumber, Radish, Carrot, Kohlrabi, Zucchini, Onion (firm)
Sphere Ø 5.0 mm Avocados, Apples, Pears, Cucumbers, Oranges, Peppers, Papayas, Melons, Mangoes, Citrus fruits, Onion(soft)
Spherical segment r= 6.3mm Cooked Potatoes, Bananas, Smoked Fish

Features & Benefits

1) User Friendly: The yielding of the surface at a given contact force and defined measuring distance are displayed. The measured values are not a force unit but a quotient.

2) Large display: This fruit texture analyzer has a large display of 102 x 64 pixels making it easy for an operator to see the readings. The screen is subdivided into general data information, the main field for measurement results on the test sample and the navigation bar+ charge status of the battery.

3) Interchangeable test anvils: The operator can choose the test anvil according to the fruit or vegetables being tested.

4) Non-Destructive method: The method used for testing the sample is non-destructive, therefore does not damage the fruit or vegetable. The test anvil does not penetrate the fruit peel, whereas the penetrometer damages the fruit to obtain a firmness measurement. Many vendors are still wasting tons of food annually and unfortunately, it is negatively impacting the end consumers. The Bareiss digital firmness analyzer is replacing penetrometers all over the World and providing real cost-saving advantages to growers, packers, retailers, and consumers.

5) Data storage: This type of fruit penetrometer uses a shore hardness scale, has the capacity to store up to 300 measured values and has a serial interface. The USB cable is used to transfer the measured values to a PC.

6) Handgrip: This digital fruit hardness tester consists of a patented handgrip for achieving the correct measuring angle and pressure. The body of this digital durometer is made up of an aluminum alloy which provides a light and robust design.

7) Error indication: The device gives an error beep if the procedure is interrupted.

Digital hardness tester HPE III including one indenter, free choice, for ranges of application: peaches, apricots, plums, cherries, tomatoes, strawberries, cucumbers, radish, carrots, apples, avocados, papayas, melons, oranges, mango, cooked potatoes.

HPE III Fff

Specifications

Ingress Protection IP 50
Display accuracy ± 0.5 Fff
Resolution 0.1 Fff
USB Power Supply
Output 5 VDC1000 mA
Input 100- 240 VAC50/60 Hz150 mA
Communication Interface
Data output RS232
Charging cable/ communication line RS232/ USB- Converter
Display
Graphic display 102 * 64 PIXEL
Dimensions (H*W*T) weights
Measuring devices 160 x 70 x 40 mm 0.37 kgs
Case 240 x 210 x 55 mm 0.5 kg

Package Content Kit

Digital Fruit Hardness Tester, USB output cable, and power adapter in a foam-fitted hard carrying case. One test anvil of the customer’s choice is included, and the rest are sold separately.

Factory Calibration Certificate

Works-calibration certificate for this Fruit texture analyzer is available upon request

Software Available

BareissOne for data logging and analysis is available upon request




Download Data Sheet
